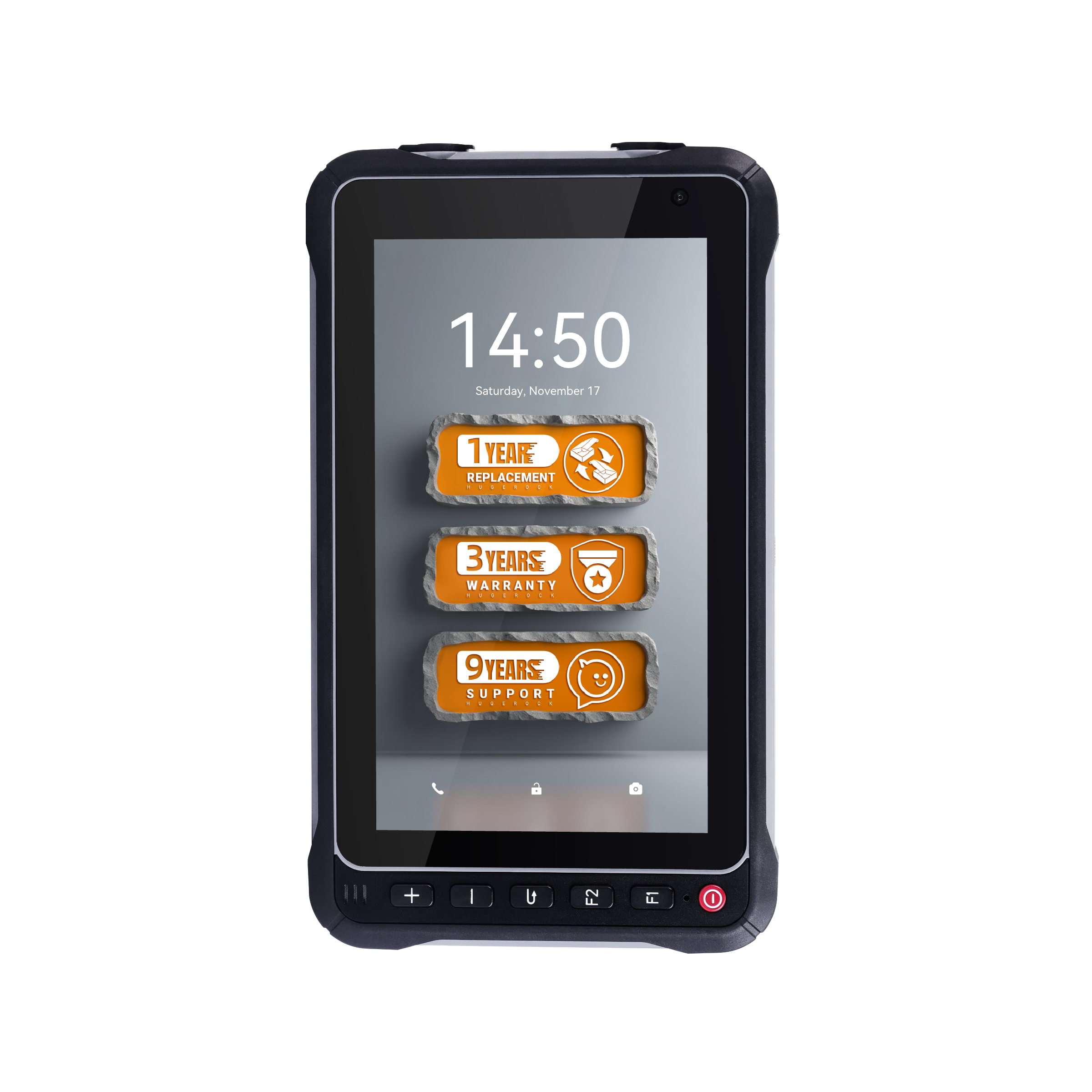

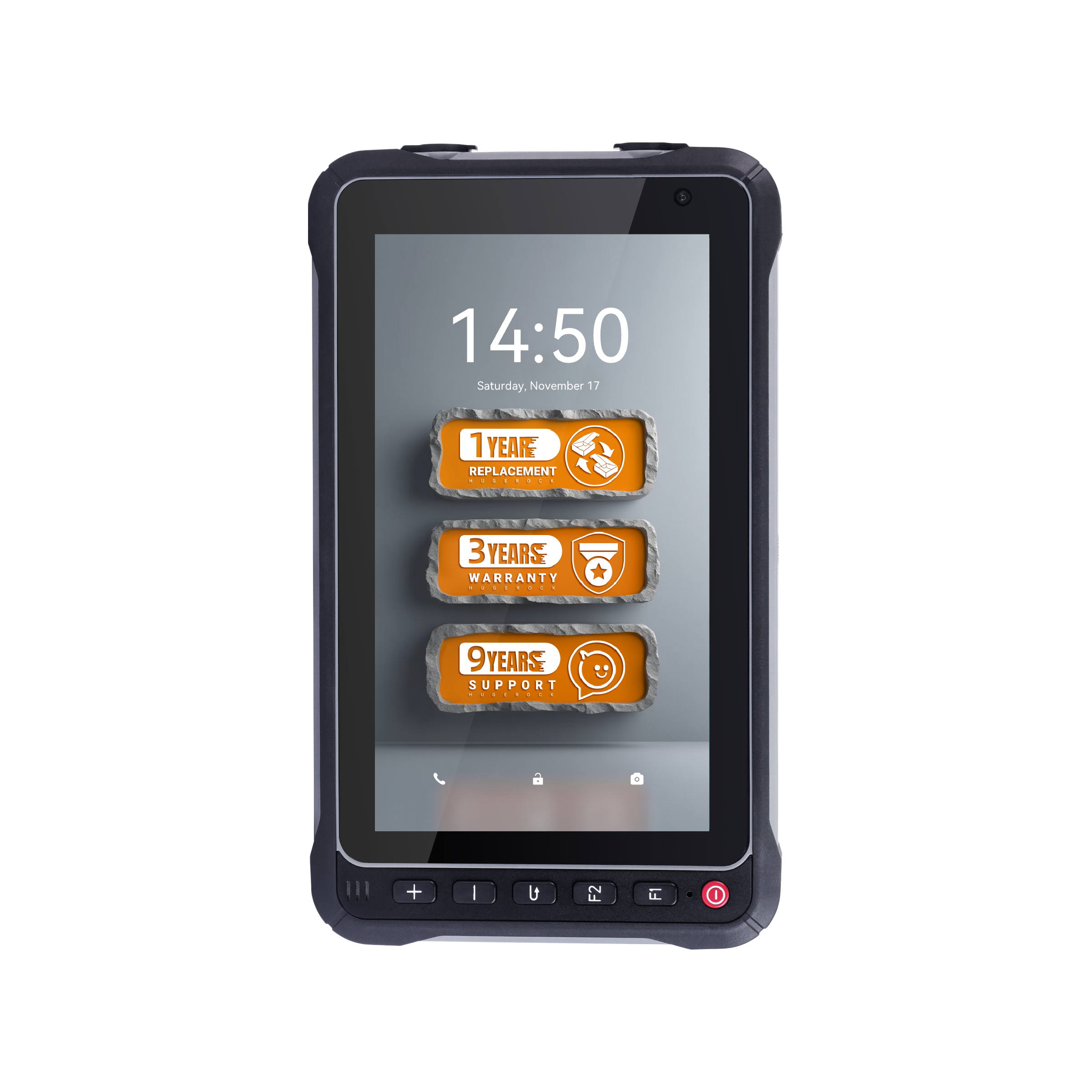

5G RUGGED GIS TABLET
H72
Keep the map clear. Keep the field team moving.
A compact 7-inch platform for GIS collection, infrastructure surveys and location-based field records, with a high-brightness display for outdoor work.
Display
7″ · 1080 × 1920 · 2200 nits
Battery / power
10,000 mAh
Device weight
660 g
Primary configuration
8 GB + 256 GB
WORKFLOW FIT
Start with the work your team needs to complete.
01
GIS & asset mapping
Read the map, capture a feature and attach field photographs within your GIS application.
02
Infrastructure surveys
Use the 7-inch format for inspections along roads, utilities and distributed infrastructure.
03
Positioning integration
Validate L1 + L5 positioning under your site conditions; assess an external receiver when the project requires survey-grade accuracy.
See the worksite. Plan the deployment.
A 2200-nit display prioritises outdoor readability. Test sustained brightness, thermal behaviour and battery use in the intended sunlight and temperature.

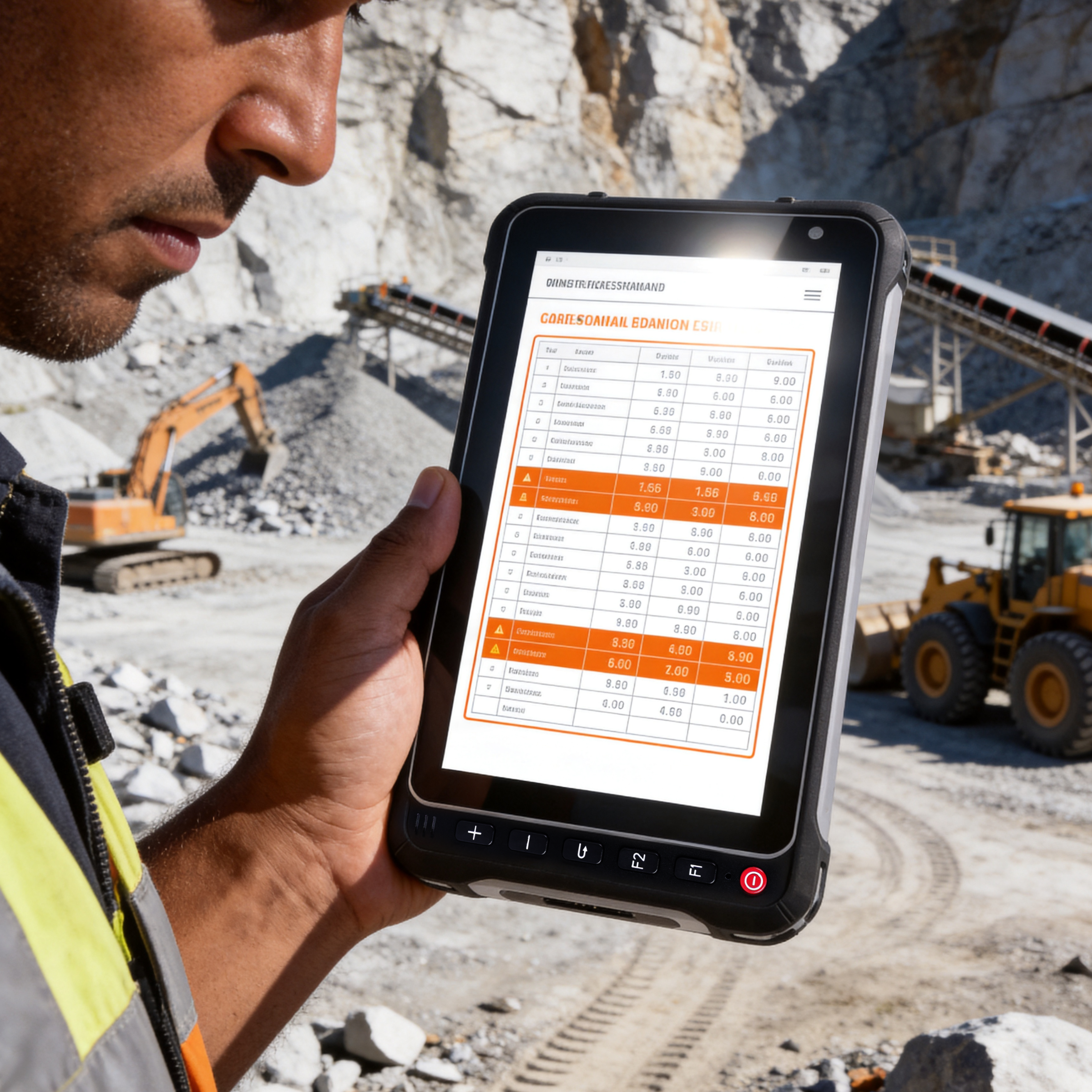

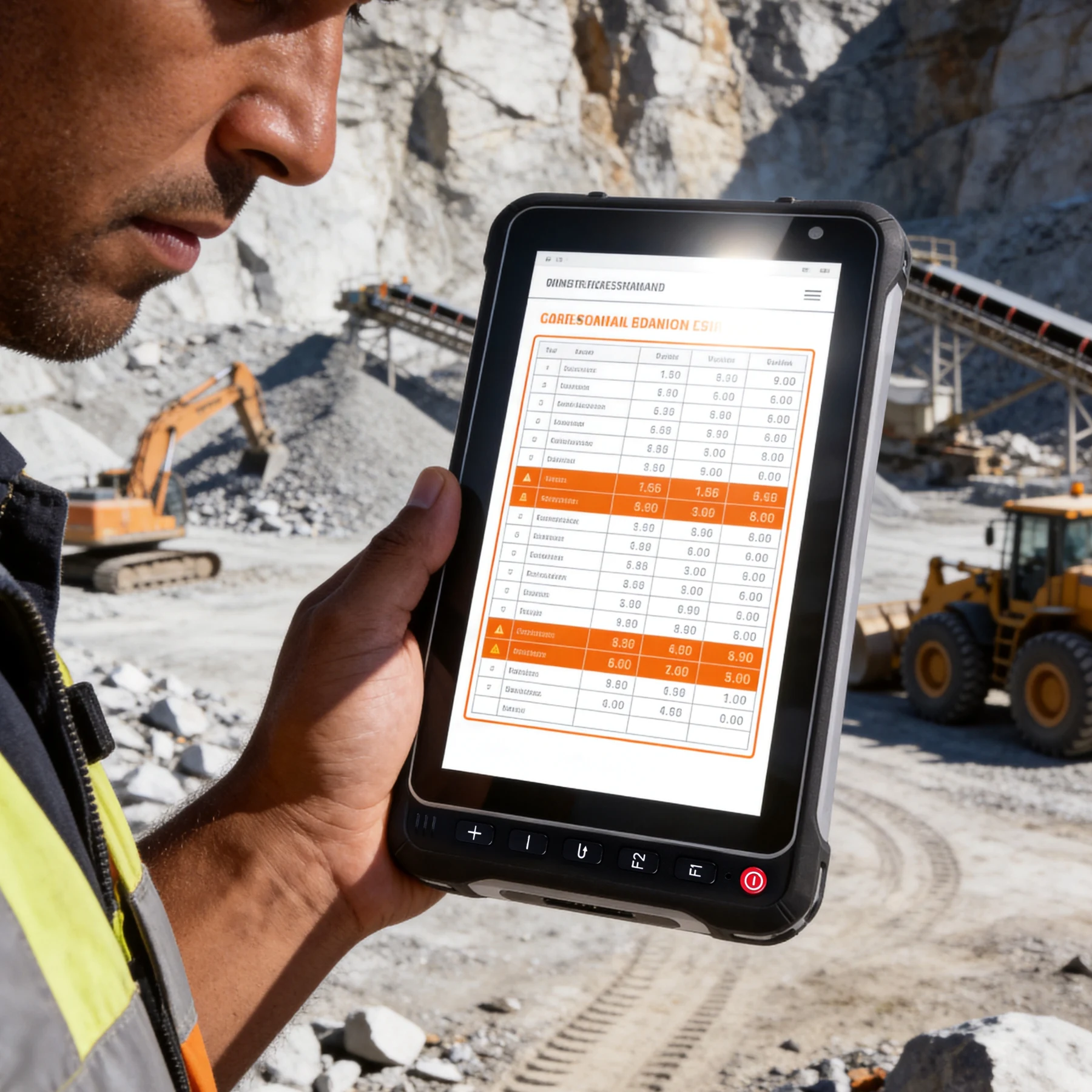

Application environment illustration; equipment shown may differ from the supplied model.
TECHNICAL & COMPLIANCE REVIEW
Give IT, operations and EHS the details they need.
Enterprise software
Google GMS certification and Android Enterprise Recommended support provide a basis for enterprise application deployment. Confirm the delivered OS build, EMM compatibility, enrolment method and security maintenance plan for your project.
Environmental suitability
−31°C to +61°C operation for the 5G flagship platform. Validate cold start, touch, brightness, network and battery performance under the actual workload; charging and ATEX-certified variants have their own limits.
Hazardous-area requirements
For hazardous-area projects, request the certificate and approved configuration for the exact model and destination. Hazardous-area suitability must be established before use.
SPECIFICATIONS & OPTIONS
Detailed information for your technical shortlist.
Standard-platform reference and integration options. Confirm the final BOM, supplied software and approved accessories in the project quotation.
Core Hardware Specifications
| Processor | MediaTek Kompanio 900T Octa-core Up to 2.6GHz | 6nm process |
| Graphics | ARM G68 MC4 |
| AI Performance | APU 3.0 (2.6T) |
| Memory | 8GB LPDDR4 RAM |
| Storage | 256GB UFS |
| Expandable Memory | Expandable via microSD (supports up to 2TB) |
| Cameras | Rear: 48MP Main (autofocus, LED flash) + 5MP Secondary (wide-angle) Front: 8MP Camera |

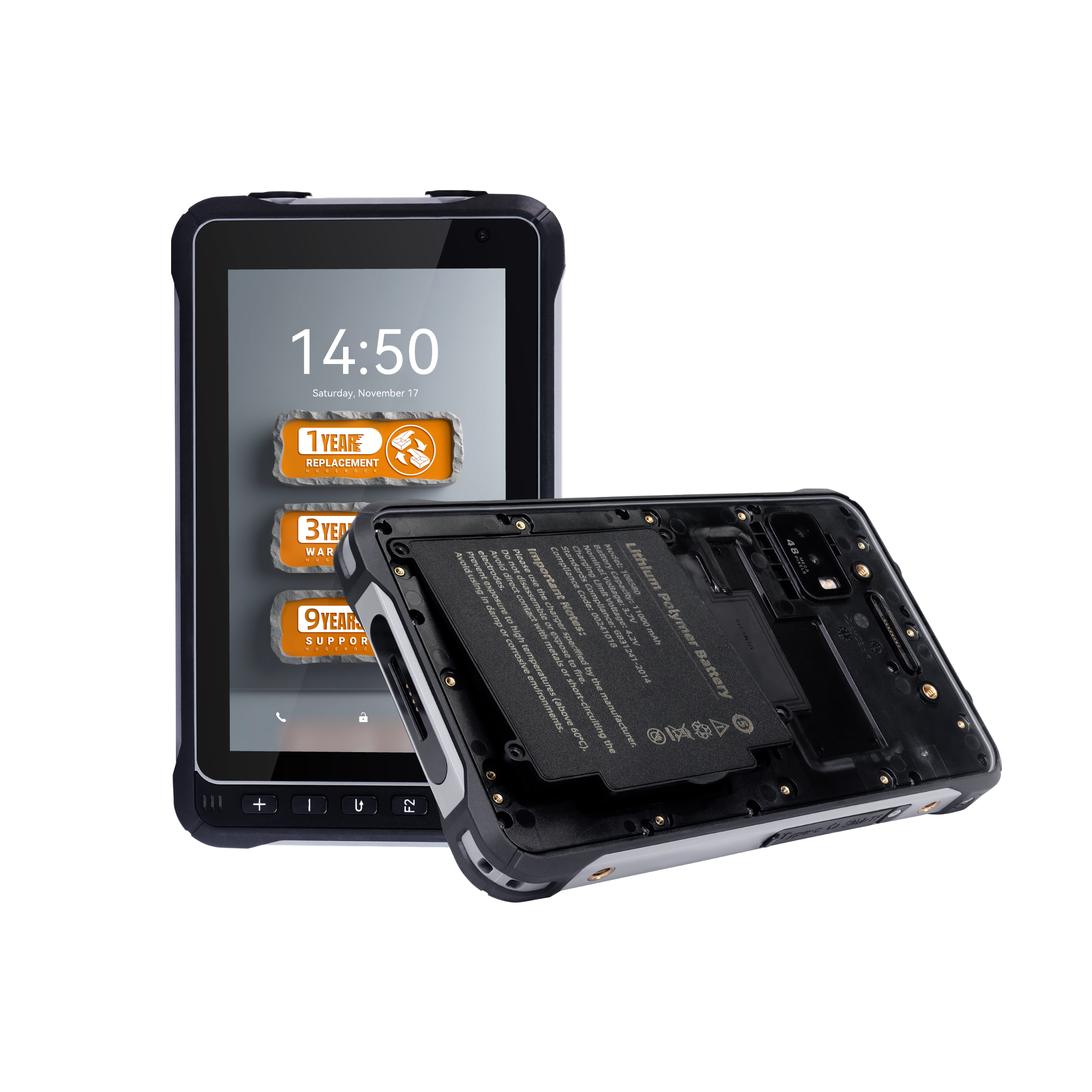

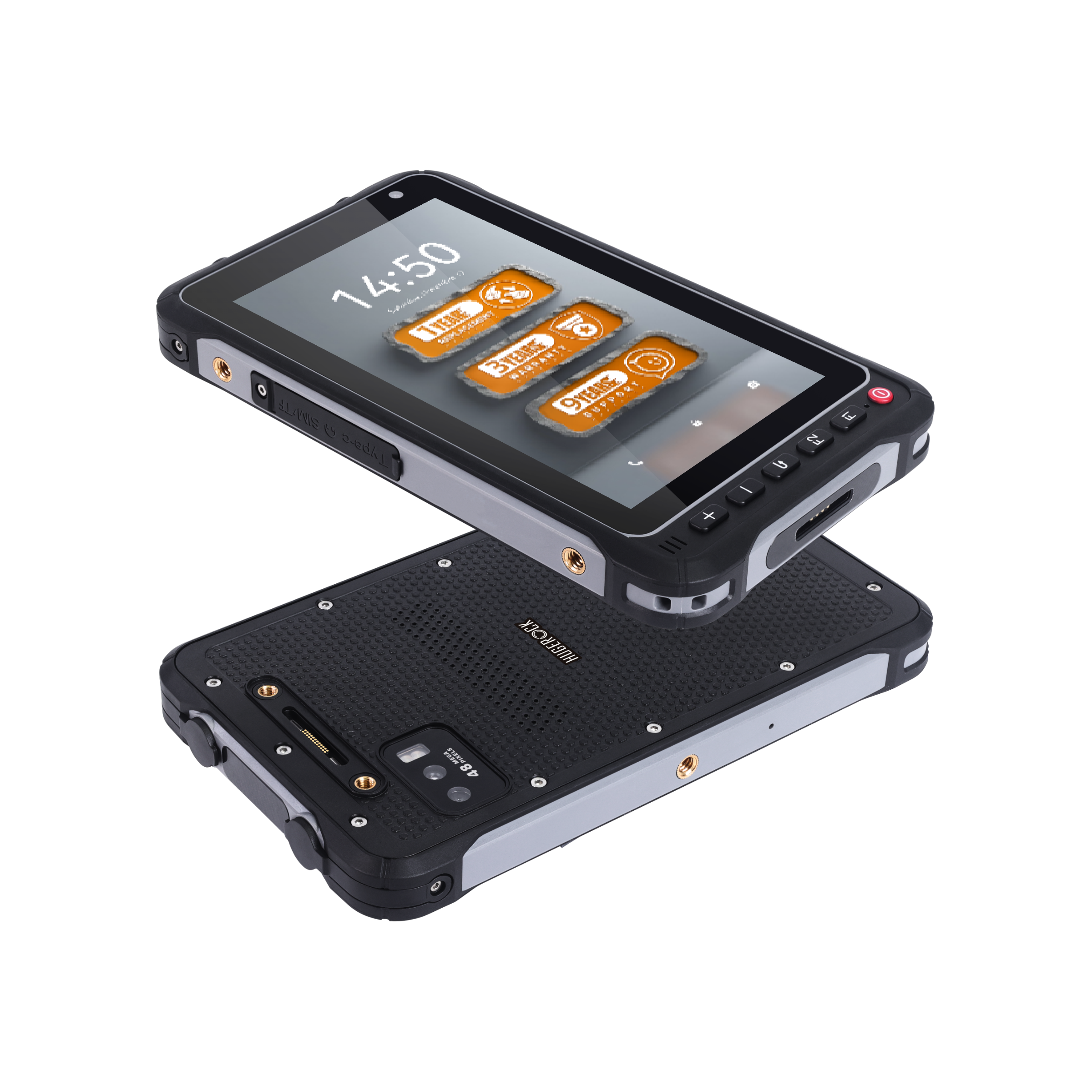

| Battery | 10,000mAh removable battery |

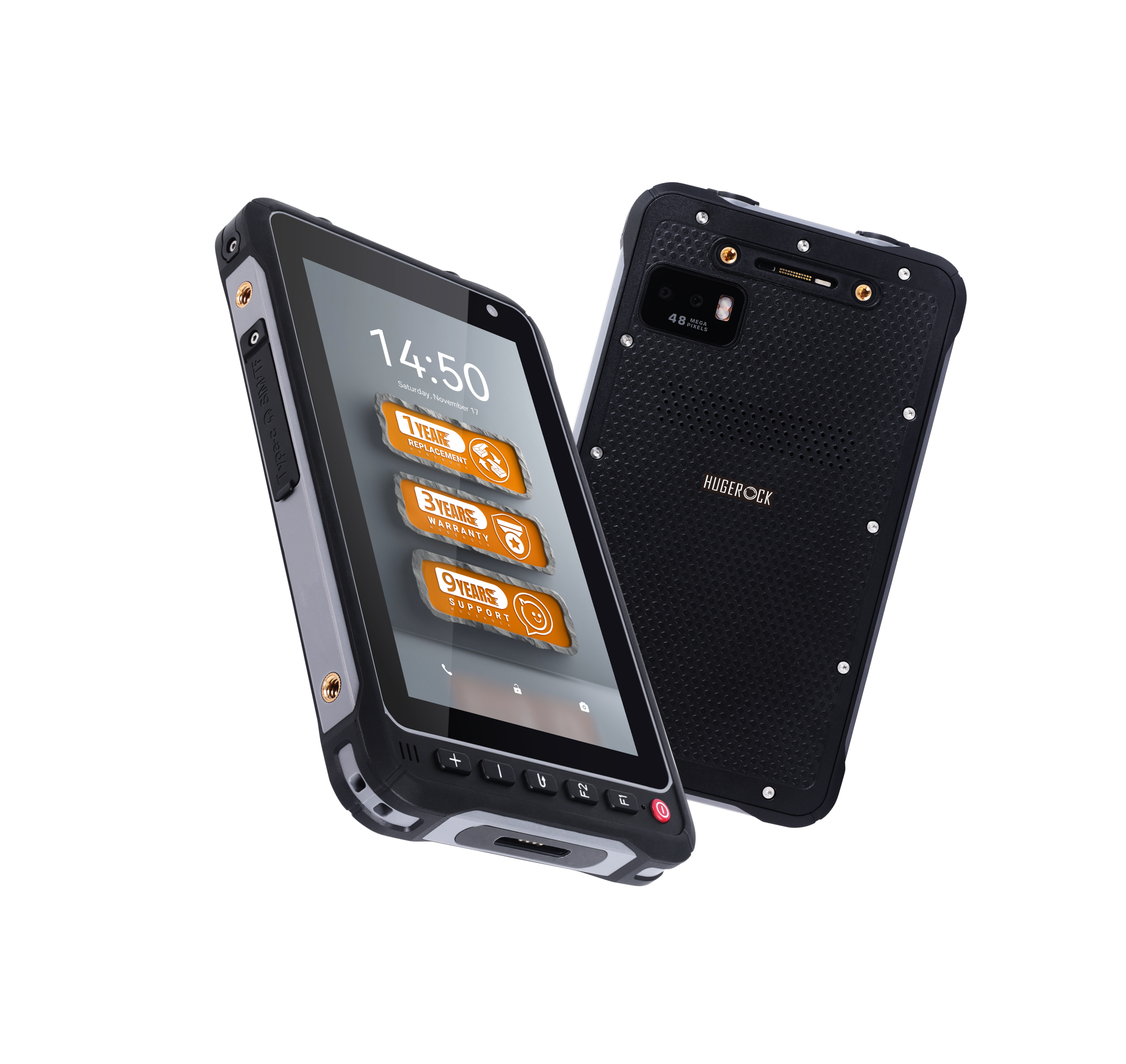

| Display | 7-inch AFFS/IPS panel | 1080×1920 FHD resolution | 2200 nits high-luminance (sunlight-readable) |
| Touchscreen | Capacitive touchscreen | Glove-touch support | Anti-fog coating | Active stylus compatible |

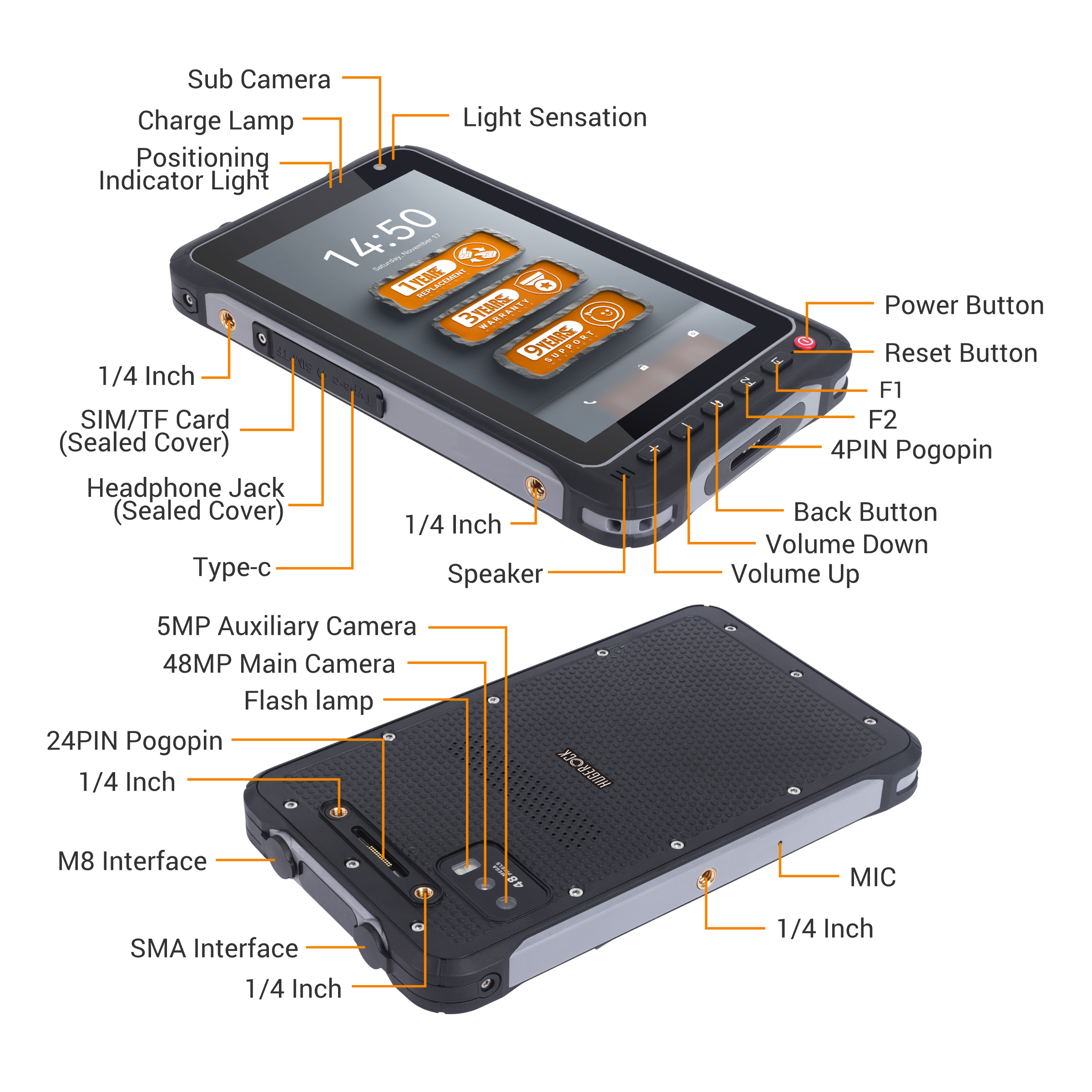

Interfaces & Sensors
| Card Slots | Nano-SIM×2 or (Nano-SIM×1 + microSD×1) |
| Power Interface | Type-C /4-pin magnetic connector |
| M8 Aero Head Interface Specifications | DC (12V=1.5A/RS232) |
| 24-Pin Expansion Interface Specifications | DC Charging: 12V=1.5A，Serial Port: TTL Level，USB Host: Supported |
| Data Ports | Type-C (OTG) x1 |
| Sensors | Gravity, geomagnetic, gyroscope, rotation vector, ambient light, accelerometer |
| Charger | 5V 2A, 12V 1.5A,9V 2A, Support PD fast charge protocol |
| Navigation | L1+L5 GPS/BeiDou/GLONASS/Galileo/QZSS with AGPS/SBAS support |
Physical Characteristics

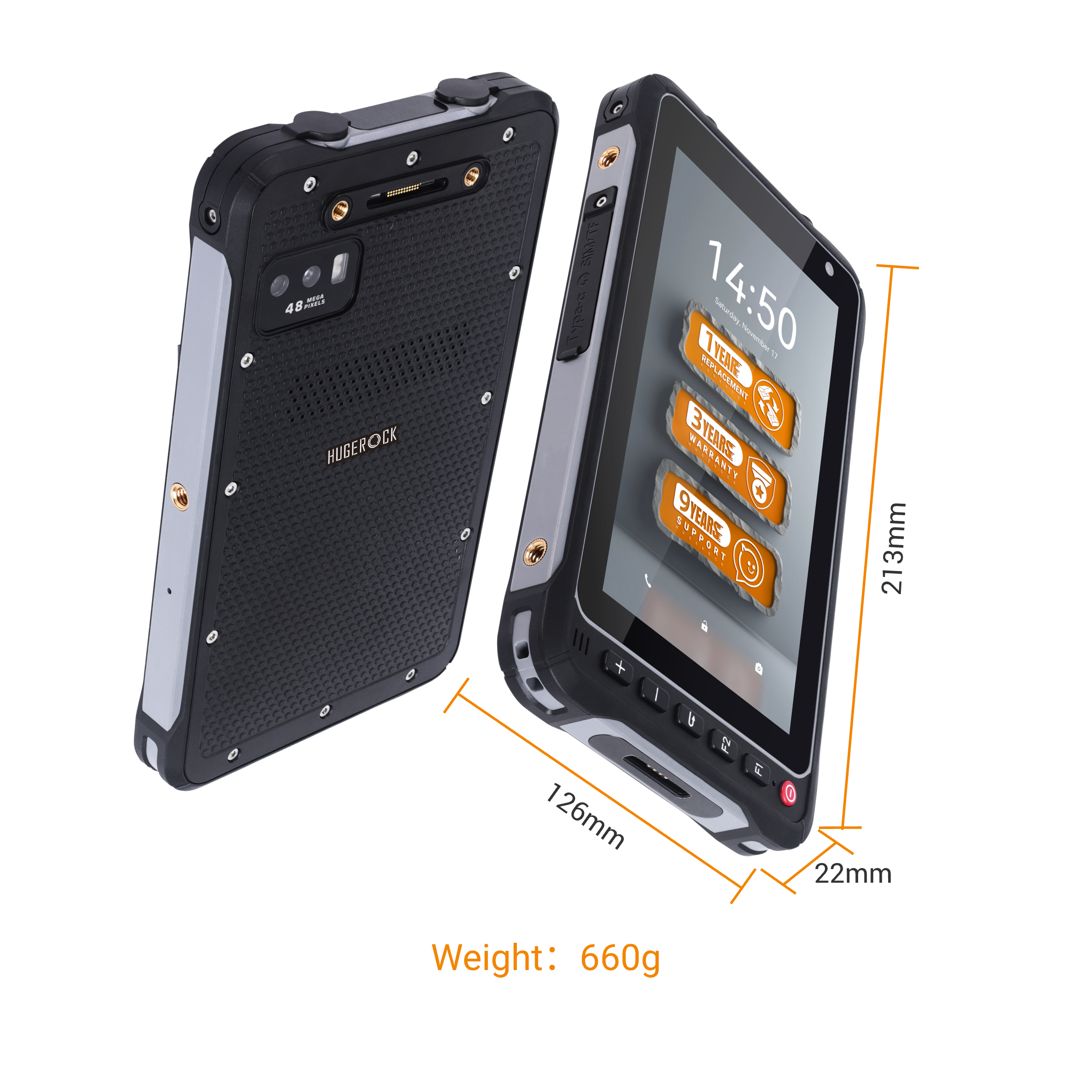

| Dimensions | 213* 126* 22mm (L×W×H) |
| Weight | 660g |
| Material | Black & gray PC-ABS-TPU composite |
Connectivity
| Cellular | WCDMA/LTE-TDD/LTE-FDD/5G NR |
| 2G /3G/4G/5G | 2G: GSM 850/900/1800/1900MHz 3G: WCDMA B1/B2/B5/B8 (42.2Mbps DL / 11.5Mbps UL) 4G: FDD: 150Mbps down, 50Mbps UP TDD: 150Mbps down, 50Mbps uplink, Band: TDD-LTE (B34/38/ 39/40/41); FDD LTE (B1/2/3/4/5/ 7/8/12/17/20/26/28a&b) Cat-18 5G NR SA n1/n3/n20/n28/n41/n77/n78/n79 5G NR NSA n1/n3/n41/n7 DL 4×4 n1/n3/n41 |
| Wireless | Dual-band Wi-Fi 6 2×2 (2.4/5GHz, 802.11a/b/g/n/ac/ax) | BT 5.2 LE |
Industrial Design & Reliability
| Vibration Resistance | 1–19Hz/1.0mm amplitude; 19–200Hz/1.0g acceleration |
| Drop Resistance | MIL-STD-810H compliant (1.8m) | IK08 impact protection |
| Water & Dust Resistance | IP68 (IEC 60529) |
| Operating Temperature | −31°C ~ +61°C |
| Storage Temperature | -40°C to 80°C |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Relative Humidity | 5% to 95% (95%RH, non-condensing) |
| Operating Altitude | Up to 4,500m (15,000 feet) |
Certifications & Software
| Certifications | Compliance documents and exact certified variants: see the document section below. |
| Language | Chinese (Simplified/Traditional), English, Spanish, Portuguese (BR/PT), Italian, German, Dutch, French, Polish, Romanian, Turkish, Russian, Arabic, Indonesian, Malay, Thai, Vietnamese, Hindi, Hebrew |
| OS | Android with Google GMS. Request the available OS build and AER documentation for your selected configuration. |
Packaging & Warranty
| Warranty | 1-year replacement · 3-year warranty · 9-year after-sales commitment. Coverage and consumables follow the service policy. |

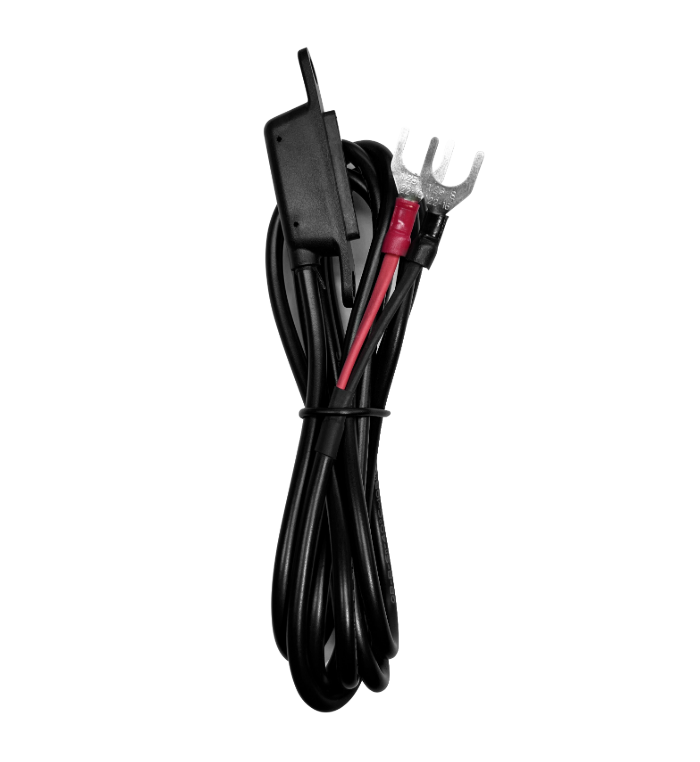

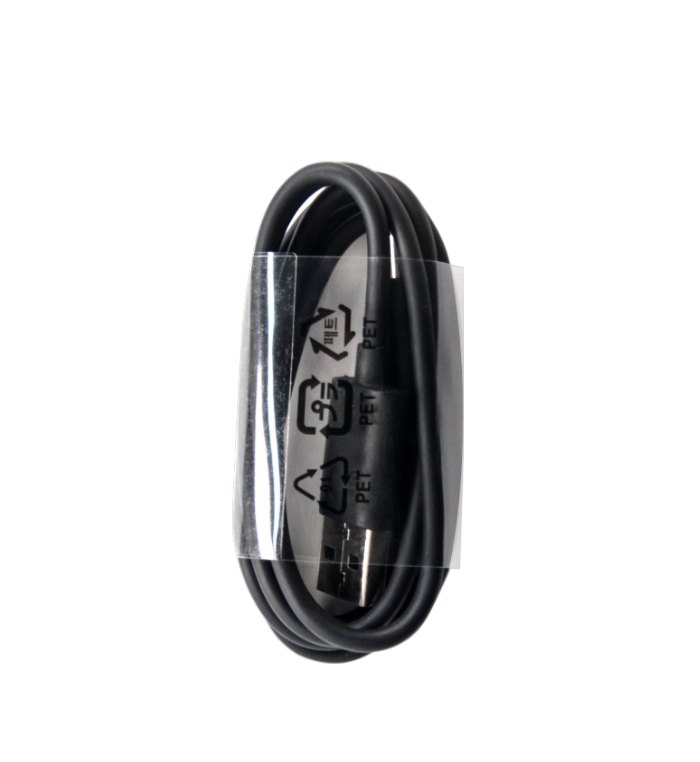

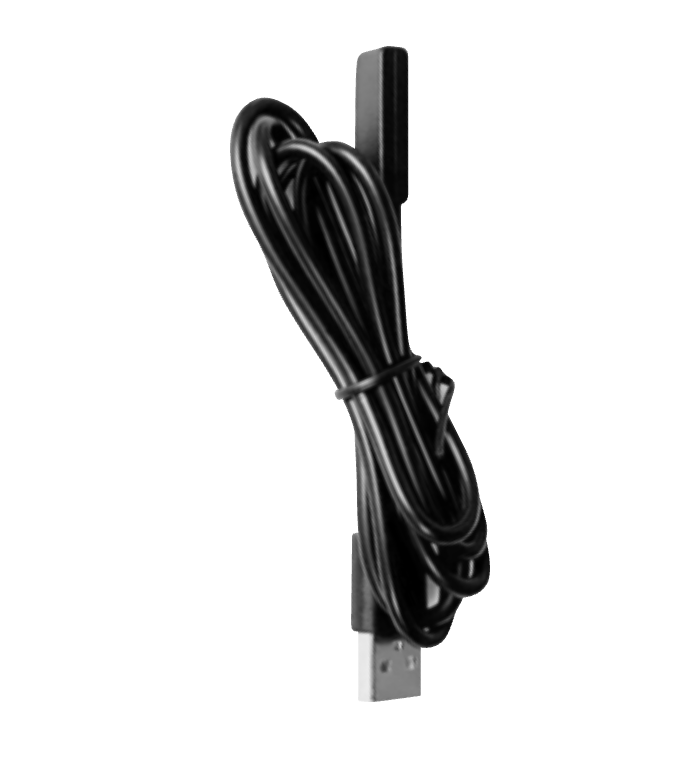

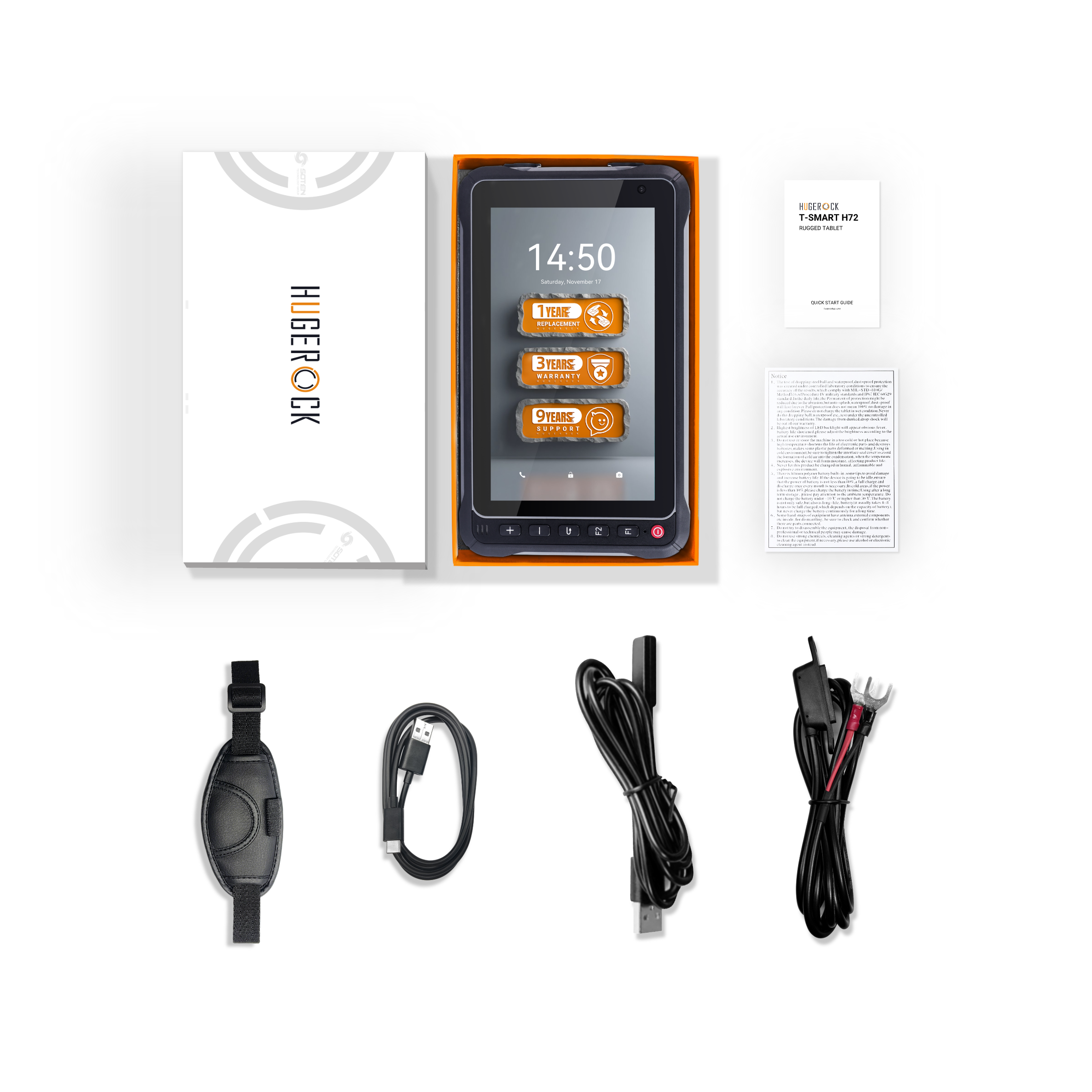

| Package | Data cable x1 | 4-Pin magnetic charging cable x1 | 24-pin magnetic charging cable x1 | screen protector (applied) x1 | packaging box x1 | user manual x1 | precautions card x1 | hand strap ×1 |
NFC Module · configuration option
| Feature Overview | Tag identification and data access depend on the selected module, API and compatible tags. Payment and access-control applications require separate authorisation and integration. |
| Operational Modes | Read/write, card emulation and peer-to-peer support depend on the module, OS and application. Validate the intended use with your system provider. |
| Performance | Effective Range: 20–50mm tag interaction distance. Frequency: 13.56MHz high-frequency operation. |
| Supported Standards | RF Protocols: ISO/IEC 14443A/B, ISO/IEC 15693, ISO/IEC 18092, NFC Forum specifications. Tag Compatibility: Comprehensive support for industry-standard cards, including: MIFARE S50/S70, Ultralight, NTAG 203/213/215/216, FM1204/FM1208, DESFire EV1 (D21/D41/D81), SRI512/SRIX4K, iCODE, HF Tagit, and derivatives. |
Ordering configuration
| Order No. | Model | Function Desscription |
|---|---|---|
| 05121203 | T-Smart H72（5G-M60） | HUGEROCK/H72-M60-R/8GB+256GB/Gray+Black/ 1080*1920/2200nits/NFC |
DOCUMENTS FOR YOUR REVIEW
Download the evidence. Share it with your team.
Certificates apply to the models, variants and conditions stated in each document. Request the applicable documentation for your deployment country and configuration.
All support resources →FROM EVALUATION TO ROLLOUT
Build a project specification your team can approve.
01 / Define the configuration
Select memory, scanning / NFC, connectivity, power, mounting and approved accessories. Confirm country-specific approvals and the exact part number.
02 / Validate in a pilot
Run your application with real labels, peripherals and working conditions. Agree measurable acceptance criteria for task completion, connectivity and battery performance.
03 / Plan rollout & service
Agree delivery batches, device provisioning, spares and repair arrangements. Service: 1-year replacement, 3-year warranty and a 9-year after-sales commitment under the applicable policy. Software maintenance is agreed separately.
Procurement & integration questions
What work is H72 designed for?
HUGEROCK H72 is intended for GIS data collection and infrastructure surveys. Match the application, physical format, connectivity and acceptance criteria to the actual site before committing to a rollout.
Does H72 provide survey-grade positioning on its own?
H72 supports L1 + L5 multi-constellation positioning. Accuracy depends on the receiver configuration, obstructions and site conditions. Projects requiring survey-grade accuracy should evaluate a suitable external receiver, correction service and software integration.
What do GMS and AER support mean for this project?
The 5G flagship platform provides Google GMS certification and Android Enterprise Recommended support. Obtain evidence for the selected model and software build, then verify EMM enrolment, application compatibility and the agreed security maintenance plan.
How is hazardous-area suitability confirmed?
For hazardous areas, use the exact model certificate, equipment marking, approved accessories and ambient limits. The general operating temperature range does not replace the certified hazardous-area limits.
What do the 1 / 3 / 9 service commitments cover?
Replacement, warranty and after-sales support follow the service policy, the supplied product and regional/project terms. Years 4–9 are paid repair under the policy; battery/consumable coverage and software update commitments are confirmed separately.
