ATEX-CERTIFIED · INTEL x86 · WINDOWS

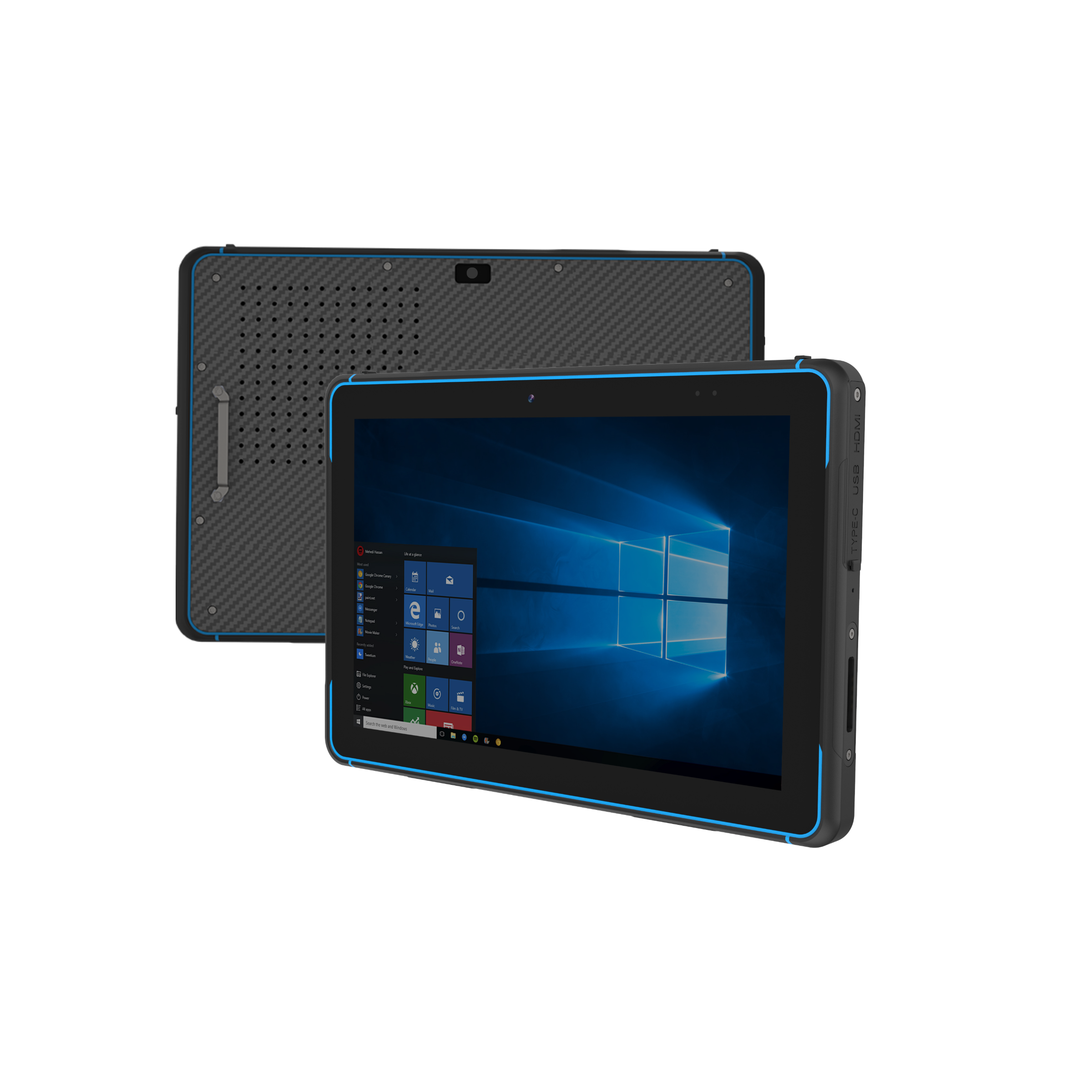

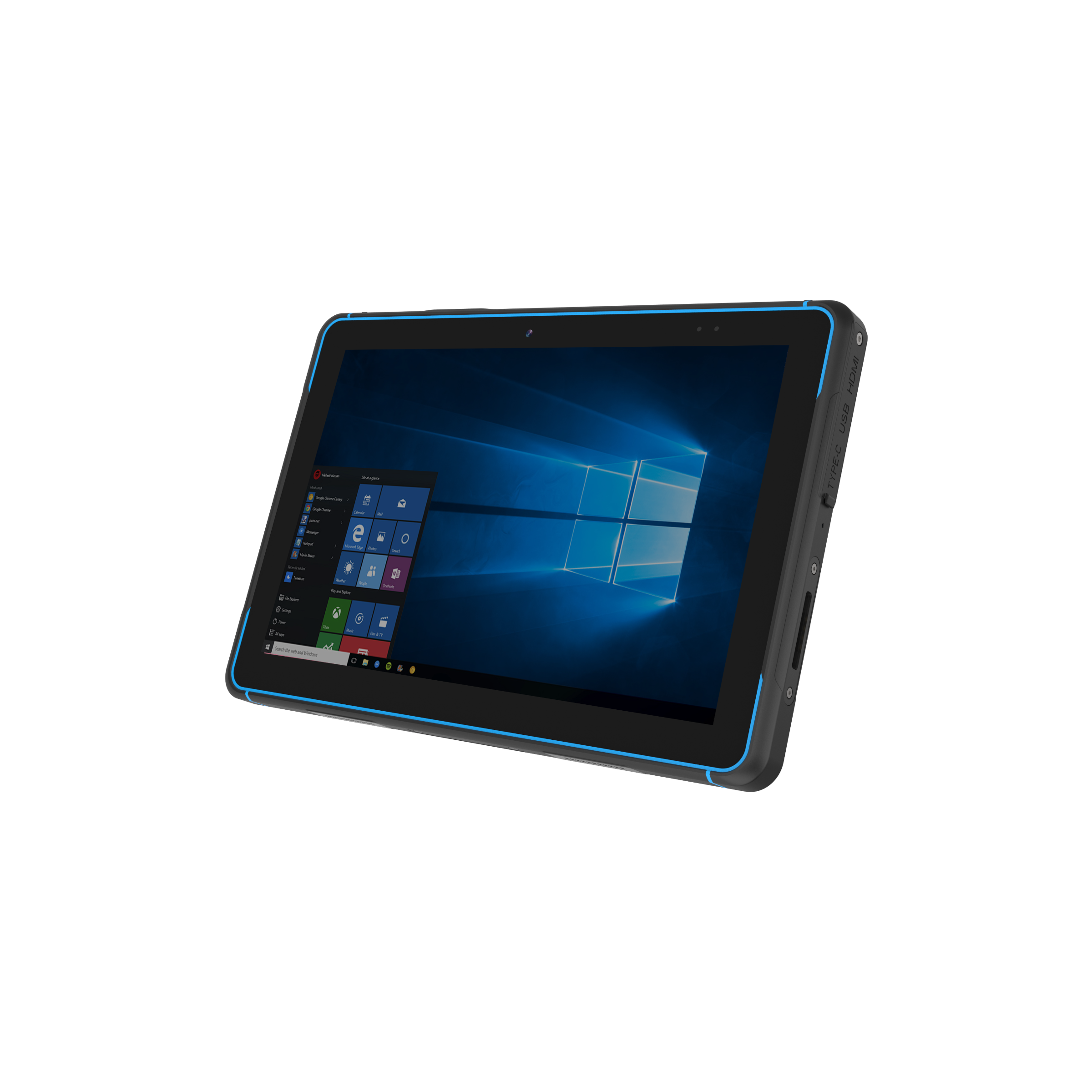

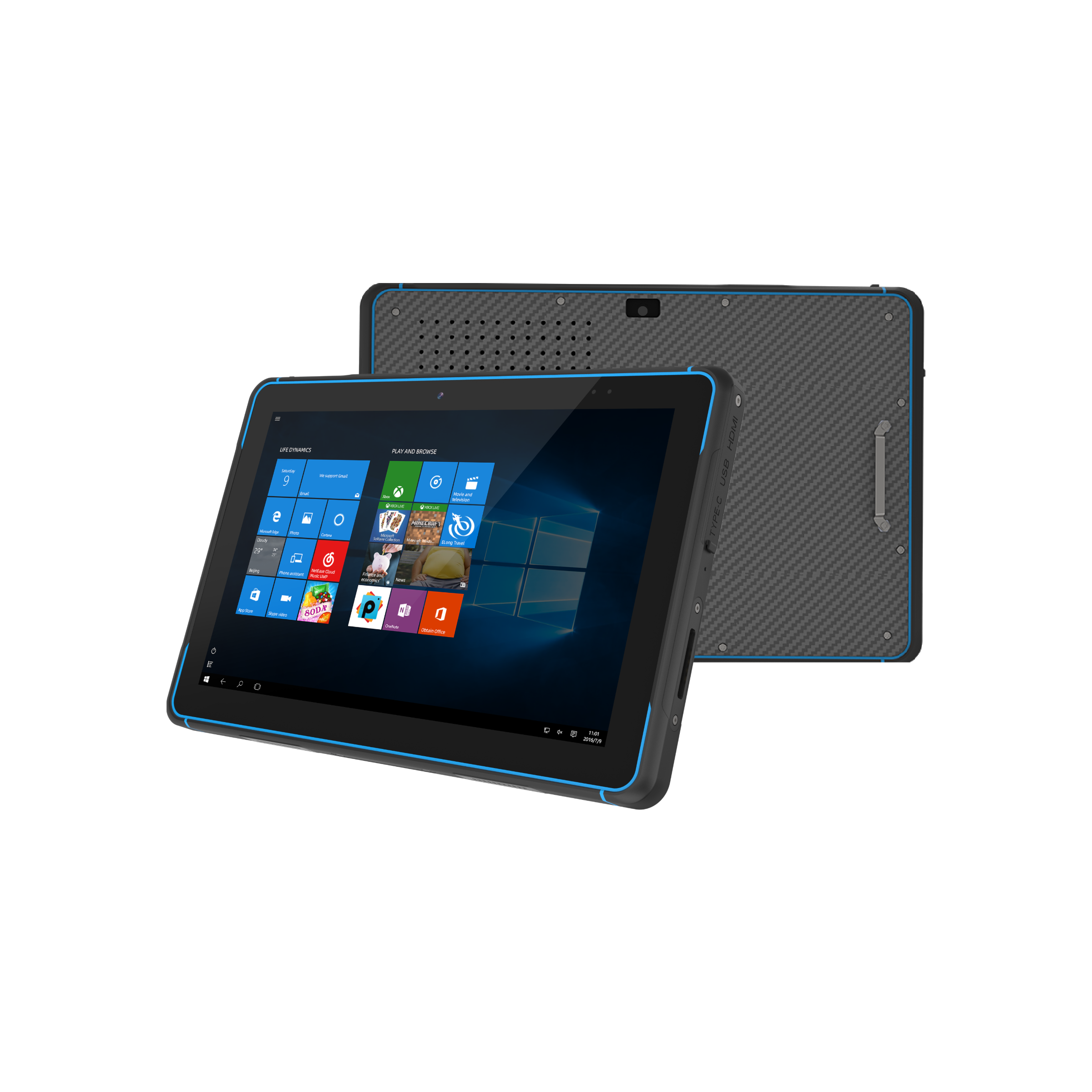

W105
Windows tools. Industrial fieldwork

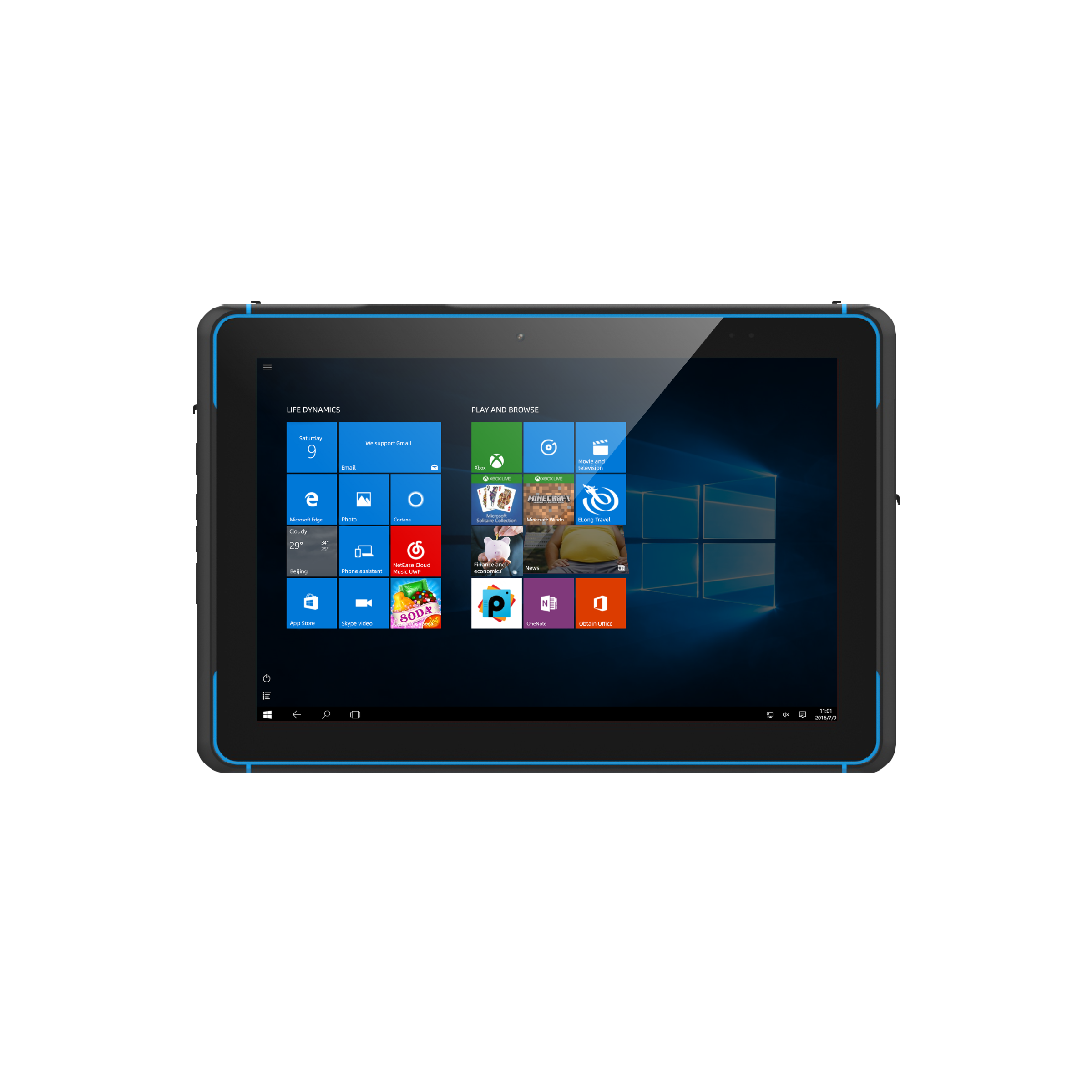

An ATEX-certified 10.1-inch Windows rugged tablet built on Intel N5105. Bring maintenance software, equipment diagnostics and technical documentation to the point of work, with native USB and HDMI connectivity.
View ATEX certificate & marking ↓ · Download technical files ↓

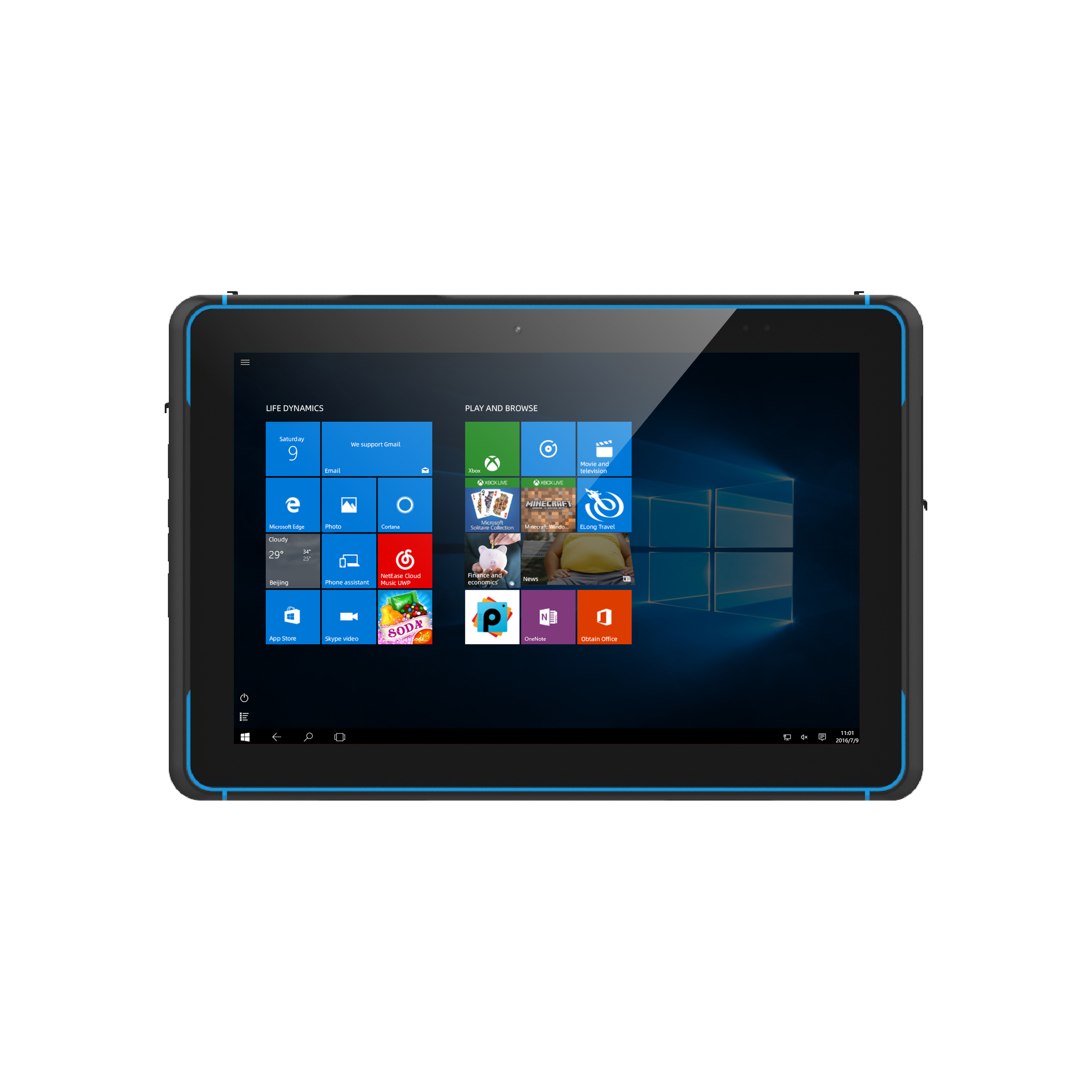

10.1-inch display
1920 × 1200
600 nits · glove touch
Memory & storage
16 GB + 128 GB
LPDDR4 · eMMC
Removable battery
5000 mAh
920 g including hand strap
Operating temperature
−20°C → +55°C
ATEX ambient limits: see certificate
DOCUMENTED EXPLOSION PROTECTION
ATEX certification. Evidence for your EHS review
W105 is covered by EU-type examination certificate ECM 25 ATEX-B DQ41 under Directive 2014/34/EU.
II 2G Ex ib IIB T4 Gb
Model: W105 · Test file: TH2502289-C02-R01
Open original ATEX certificate ↗ · Explosion-protection test report ↗
Select the certified configuration to match your area classification. Confirm certificate annexes, equipment marking, ambient limits and permitted battery, accessories and connection procedures before hazardous-area deployment.

APPLICATIONS
Keep Windows workflows close to the asset
01
Manufacturing maintenance
Open equipment manuals, complete inspection records and run your validated Windows maintenance application at the machine.
02
Energy & process facilities
Support maintenance records and diagnostic workflows with the ATEX-certified configuration approved for the site. Assess connected instruments as part of the complete system.
03
Field service & commissioning
Connect supported service tools, review technical files and capture job evidence. Validate driver compatibility and the network available at each site.

From the maintenance desk to the production floor
A 10.1-inch FHD workspace provides room for diagrams and service forms. Glove touch and optional active capacitive pen support different input tasks; test touch performance with the gloves used on site.
NATIVE INTERFACES & CONFIGURATION
Connect the tools your workflow depends on

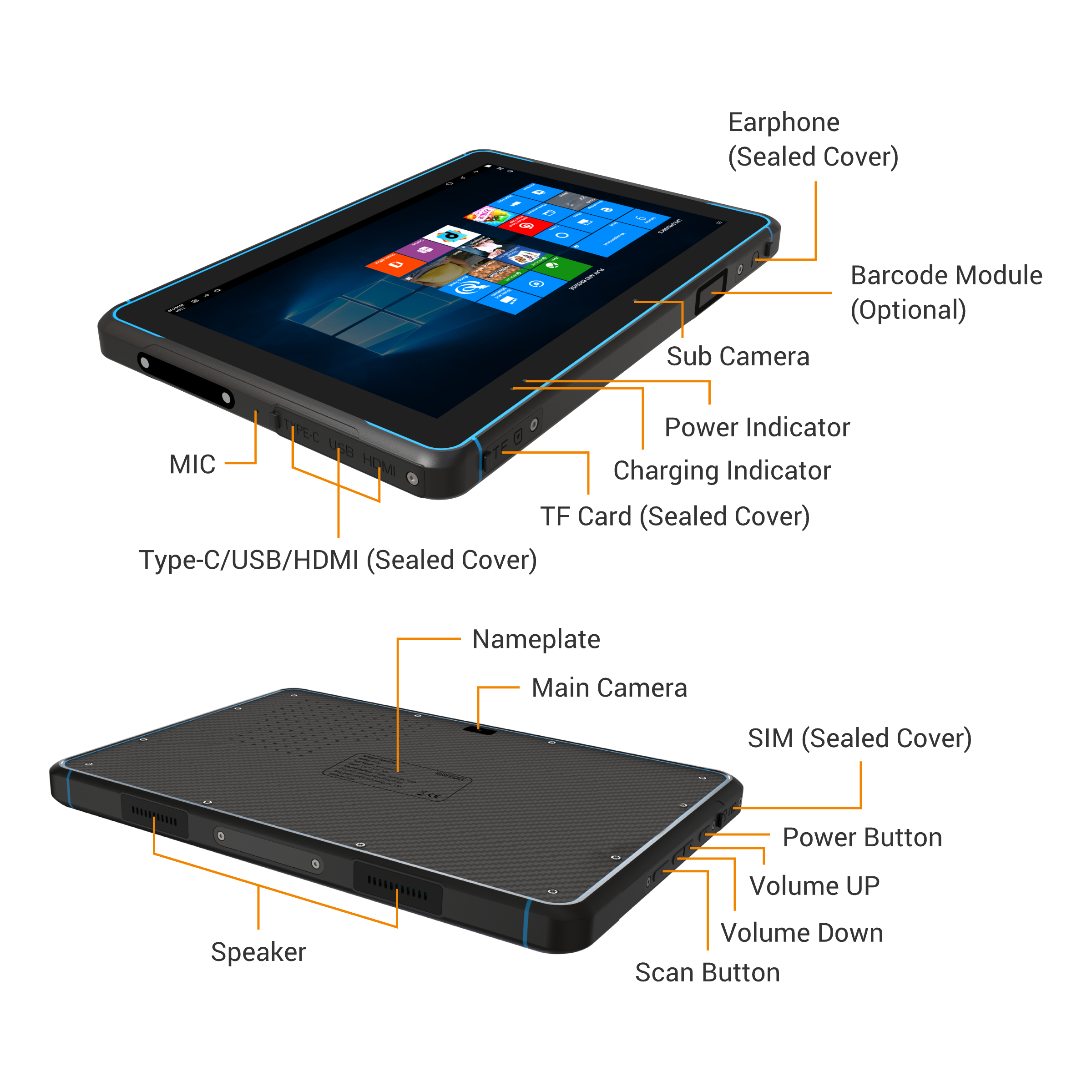

USB Type-A · USB Type-C · HDMI
Native data interfaces connect compatible diagnostic peripherals and external displays. Confirm required protocols, power draw and cables with your actual equipment.
Wi-Fi 6 and Bluetooth 5.1 LE are listed in the standard specification. Optional 4G, E20 barcode scanning, active pen and magnetic connection accessories must be specified in the project configuration.
Check the allowed connections and accessories separately for the ATEX-certified configuration.

Size your installation before ordering

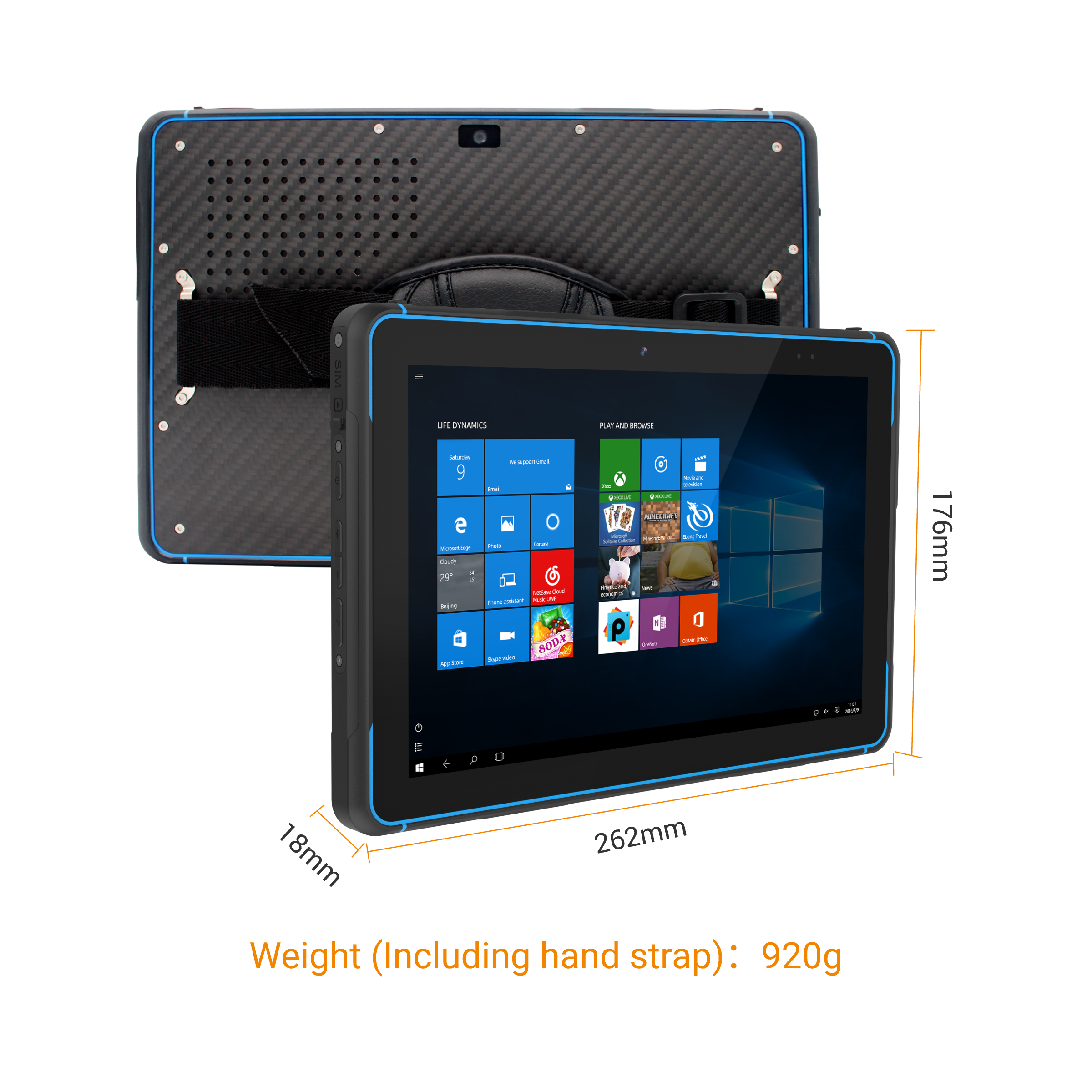

262 × 176 × 18 mm; 920 g including hand strap. Review access to connector covers, cable clearance and the intended carrying or mounting arrangement with your project team.
5000 mAh removable battery. Plan charging and replacement procedures; runtime depends on the application, brightness, network and peripherals.
PROJECT QUALIFICATION
A clear path through technical approval
| Your team | Decision focus | Evaluation information |
|---|---|---|
| IT / application owner | Windows application & drivers | Test the actual software version, licence, OS edition, drivers, security baseline and recovery image. Ubuntu requires a separate compatibility review. |
| Operations / maintenance | Task completion on site | Run real service tasks with gloves, diagnostic tools and the intended network. Measure task time, readability and battery use. |
| EHS / compliance | Certified configuration | Match site classification, certificate, annexes, equipment marking and permitted accessories. Standard operation is −20°C to +55°C; certified ambient limits govern hazardous-area use. |
| Procurement / integrator | Delivery & lifecycle cost | Agree the part number, OS licence, installed storage, options, acceptance criteria, delivery batches and service coverage in the quotation. |
SPECIFICATIONS & OPTIONS
Detailed information for your technical shortlist
Standard-platform reference and integration options. Confirm the final BOM, supplied software and approved accessories in the project quotation.
Hardware
| Hardware | |
|---|---|
| CPU | Intel® Jasper Lake N5105 |
| Graphics Card | Intel HD graphics |
| RAM | LPDDR4 16GB on Board |
| SSD | 1 × M.2 2242 SATA expansion slot; installed SSD quoted separately |
| ROM | EMMC 128GB |
| Expandable Memory | Micro SD card ( T-FLASH card), max 2TB |
| Main Camera | 5MP |
| Sub Camera | 2MP |
| Battery | 5000mAh removable battery |
| Display | 10.1-inch IPS FHD display 1920*1200 600 nits |
| Touch Panel | Capacitive touch screen/support active capacitive pen/support glove touch/resist water mist |
IO/Sensor
| IO/Sensor | |
|---|---|
| SIM Card/ TF Card | Nano SIM card * 1, Micro SD card * 1 (Choose any one out of two) |
| Headphone | 3.5mm headphone jack (four-stage US standard) |
| Charging | USB Type-A(Host)*1,Type-C*1,4-pin magnetic connector(optional) |
| Data Interface | USB Type-A(Host)*1,Type-C*1,HDMI*1 |
| Gravity Sensor | Support |

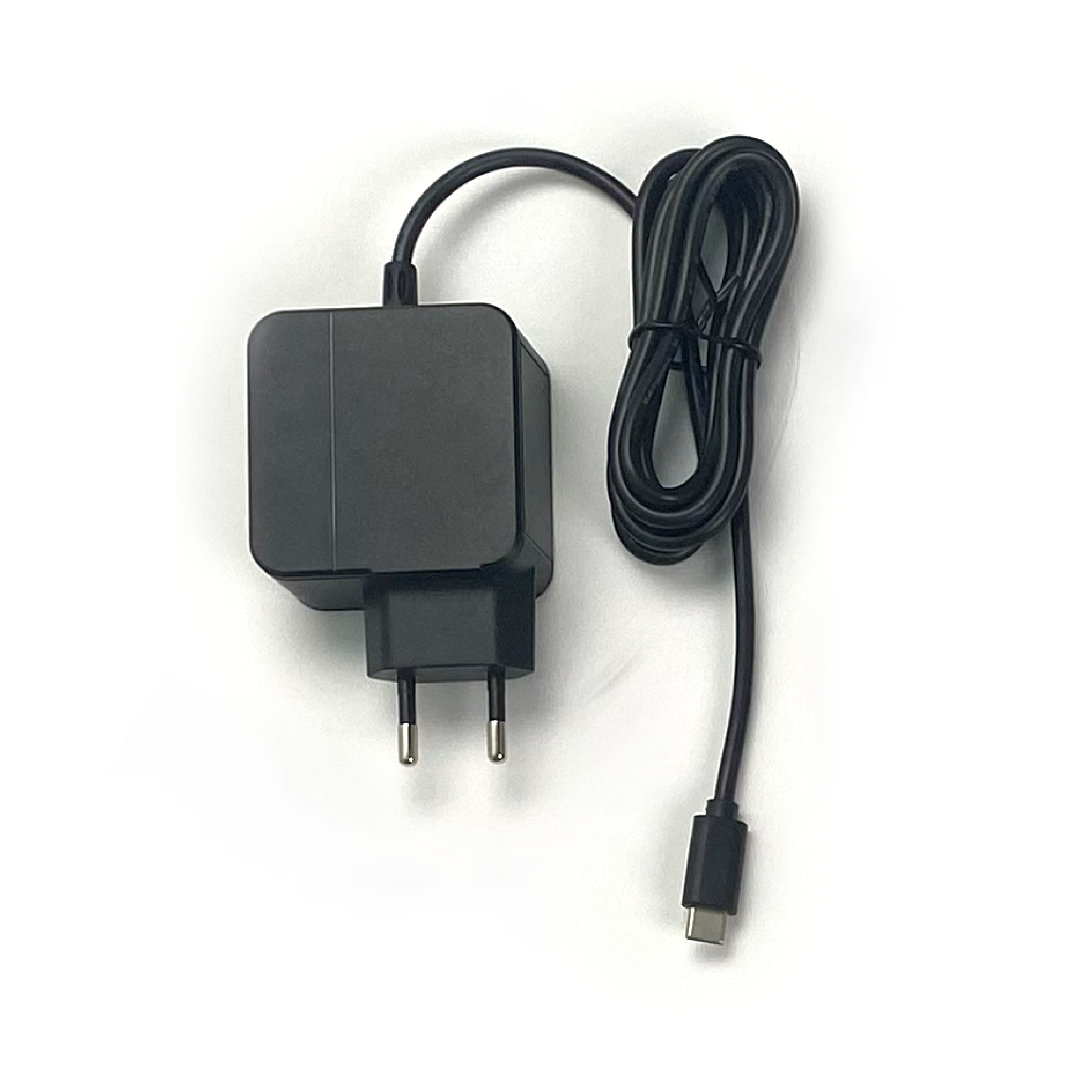

| Charger | Input AC100~240V; Output Type-C 12V*2.5A, 30W |
Appearance
| Appearance | |
|---|---|
| Dimensions | 262*176*18mm (L×W×H) |
| Weight(Including hand strap) | 920g |
| Color & Material | Black & Blue (PC+ABS+TPU) |
Communications & Networking
| Communications & Networking | |
|---|---|
| 4G Module | Optional |
| WI-FI | Dual-band WIFI (2.4GHz/5Ghz) supports WiFi 6, 802.11b/g/n/ac/ax |
| BT | 5.1 Low Energy(LE) |
Industrial & Reliability Design
| Industrial & Reliability Design | |
|---|---|
| Shake-proof | 1-19Hz/1.0mm; 19-200Hz/1.0g |
| Dropproof /IK | MIL-STD-810G/Method516.6/Procedure IV & Touch Panel IK05 |
| Waterproof | Class 8( IEC 60529 ) |
| Dustproof | Class 6( IEC 60529 ) |
| Operating Temperature | -20°C to 55°C |
| Storage Temperature | -40°C to 80°C |
| Reliability | MTBF>5000h; MTTR<0.5h |
| Humidity | 5% to 95% (95%RH, non-condensing) |
| Altitude | Up to 4,500m (15,000 feet) |
Certification/OS/Software
| Certification/OS/Software | |
|---|---|
| Certification | Compliance documents and exact certified variants: see the document section below. |
| Language | English |
| OS | Windows 10 / 11; Ubuntu subject to compatibility review. |
Packaging & Warranty
| Packaging & Warranty | |
|---|---|
| Warranty | 1-year replacement · 3-year warranty · 9-year after-sales commitment. Coverage and consumables follow the service policy. |

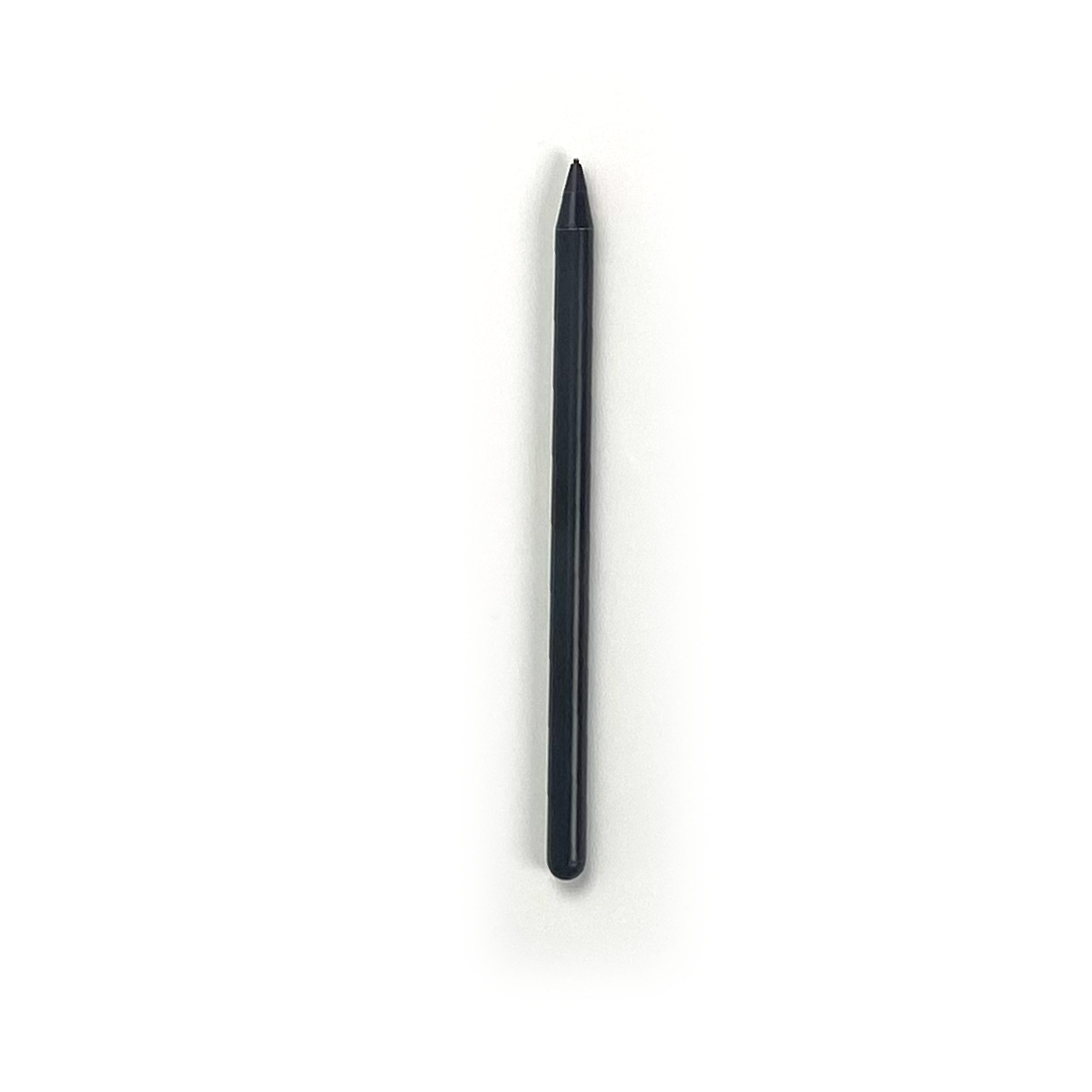

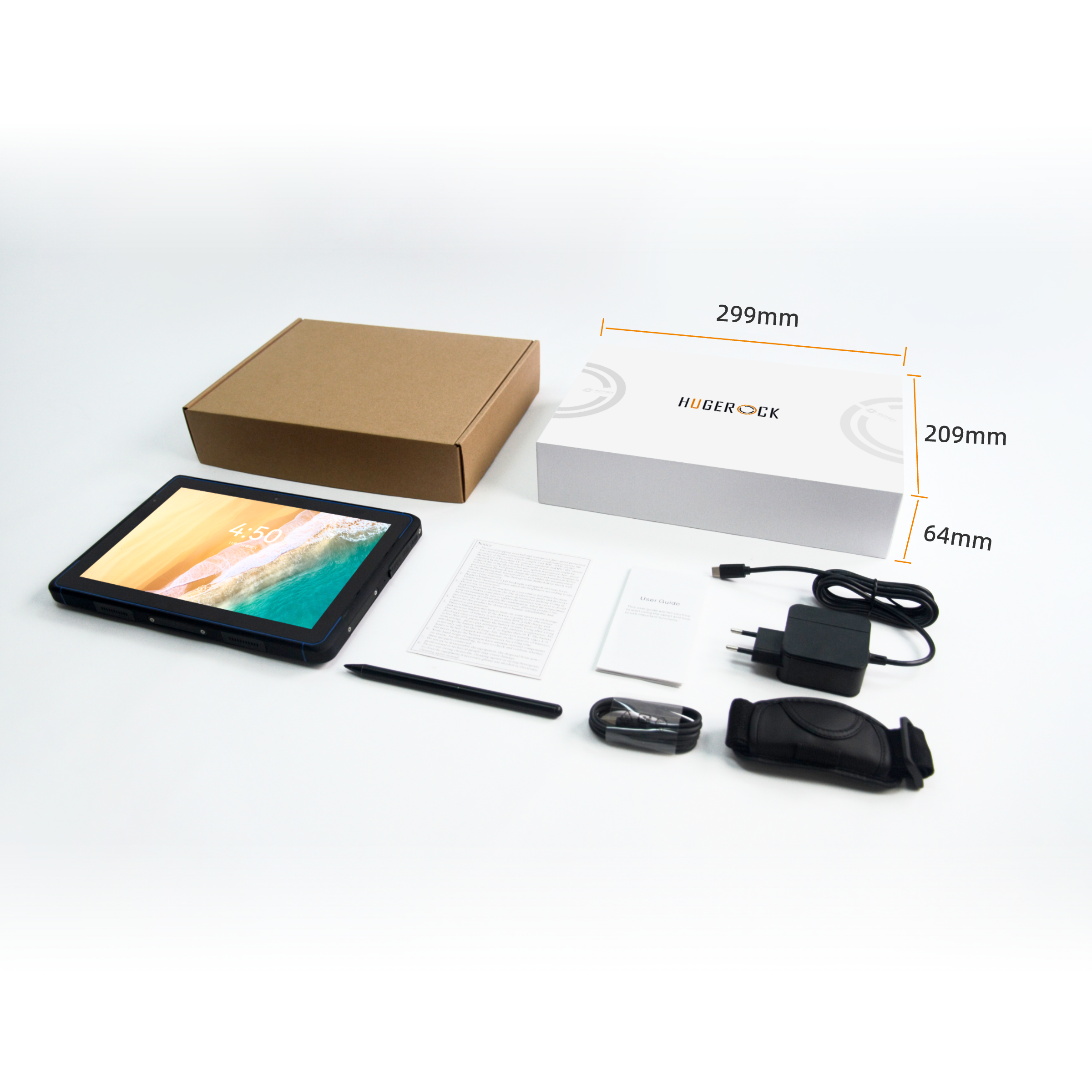

| Package | Charger x1, USB-C data cable x1, user manual x1, screen protector (attached) x1, Packing box x1, Hand strap x1, Capacitive stylus (optional) x1 |

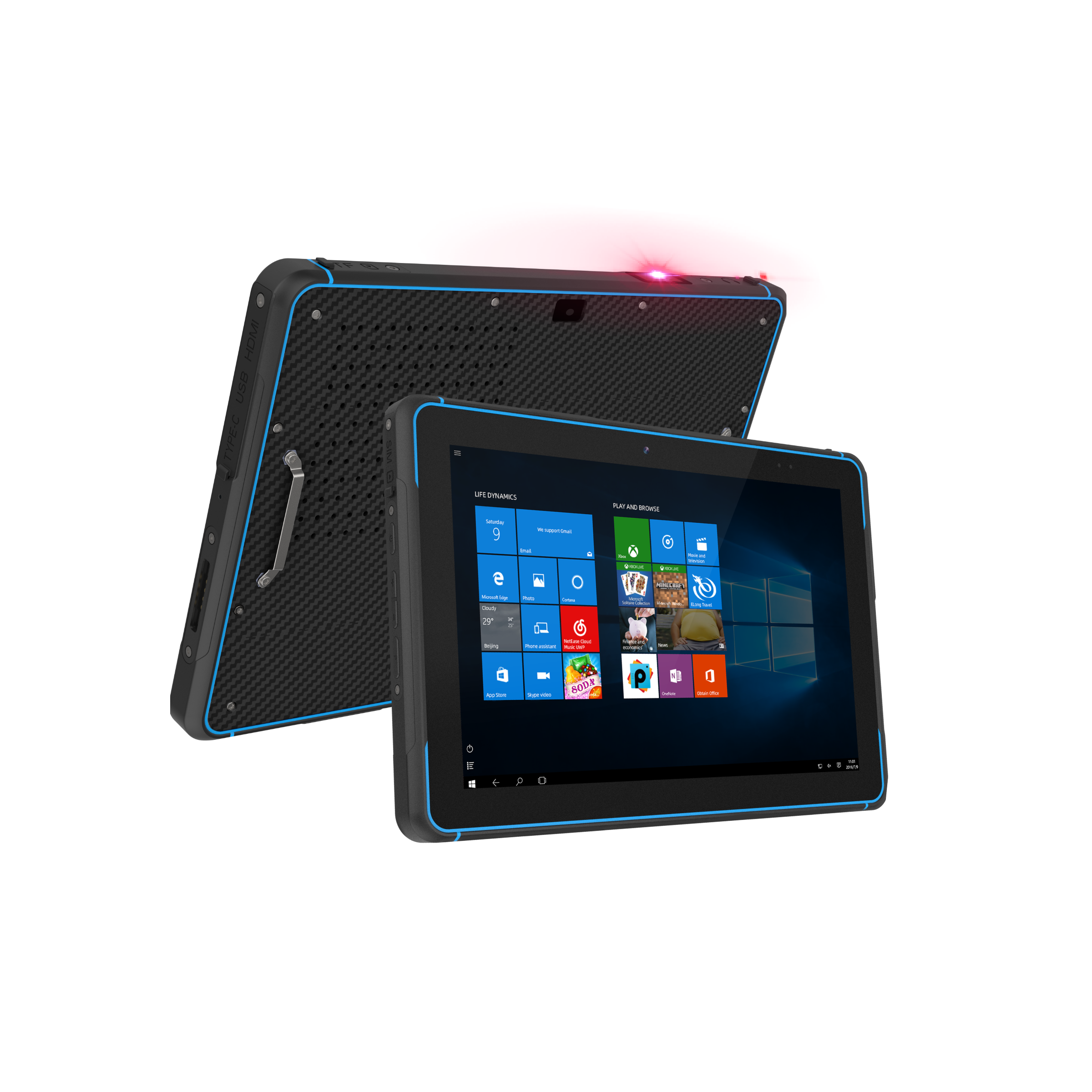

Barcode Module: E20 Barcode Scanner Module · configuration option
| Barcode Module: E20 Barcode Scanner Module | P/N: 02690141 |
|---|---|
| 2D | QR Code, Micro QR, Data Matrix, PDF417, Micro PDF417, Aztec, Maxicode, Hanxin Code, Dotcode, Composite. |
| 1D | Code 128 (ISBT 128, AIM 128, GSI 128), EAN-13, EAN-8, UPC-E, UPC-A, ISBN, ISSN, Code11, Interleaved 2 of 5, Code39, Code93, Code32, Codabar, Matrix 2 of 5, Industrial 25, IATA25, MSI Plessey, GSI DataBar, Plessey, Febraban. |
Ordering configuration
| Material number | Model | Configuration description |
|---|---|---|
| 05121118 | W105(WIFI-X10) | HUGEROCK/W105-X10/16+128G/Black+Blue/1920*1200/ 600nits/Wifi 6/TPM/E20 |
TECHNICAL FILES & CERTIFICATES
Seven W105 files. Ready for team review
Start with the technical datasheet and ATEX documents. Additional CE, FCC, RoHS and EU test files are available below; each document states its own scope.

W105 technical datasheet
V1.1
Open document ↗

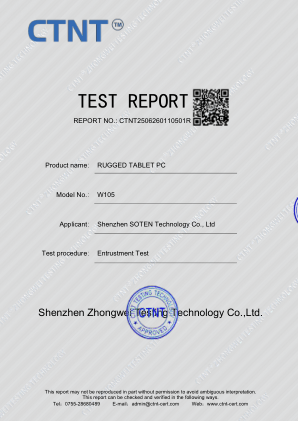

EU 2023/1670 & 2023/1669 test report
CTNT2506260110501R
Open document ↗
FCC compliance document
TCT250407E031
Open document ↗
RoHS compliance document
TCT250408C005001
Open document ↗

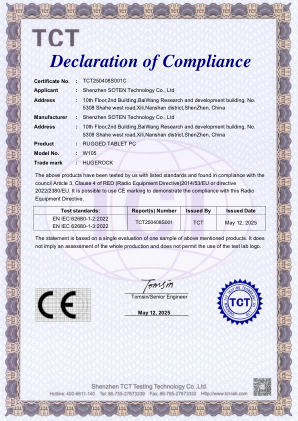

CE / common charging compliance document
TCT250408S001C
Open document ↗

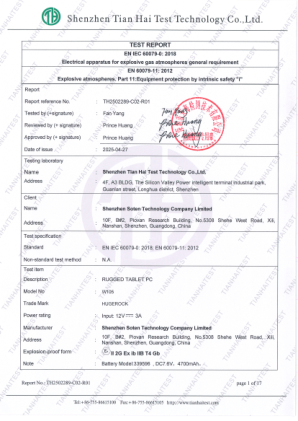

Explosion-protection test report
TH2502289-C02-R01 · See report for ambient limits
Open document ↗

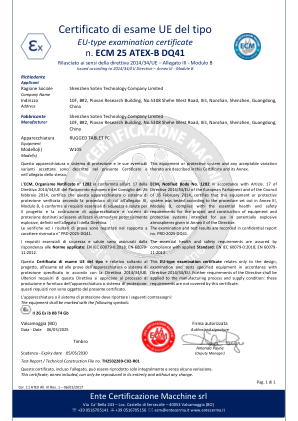

ATEX EU-type examination certificate
ECM 25 ATEX-B DQ41 · II 2G Ex ib IIB T4 Gb
Open document ↗Certificates apply to the models, variants and conditions stated in each document. Request the applicable documentation for your deployment country and configuration.
All support resources →FROM SAMPLE TO ROLLOUT
Define the configuration. Prove it on site
01
Share your application
Tell us your country, industry, Windows application, peripherals, hazardous-area requirements, estimated quantity and project schedule.
02
Evaluate a project sample
Agree a sample configuration and acceptance plan. Test software, connectors, touch input, network recovery and shift workload under actual conditions.
03
Plan delivery & support
Confirm the BOM, image, licence, batches, spares and repair process. 1-year replacement, 3-year warranty and a 9-year after-sales commitment follow the service policy; years 4–9 are paid repair. Software maintenance is agreed separately.
Procurement & integration questions
Which Windows workflows is W105 designed for?
W105 is an Intel N5105 x86 rugged tablet for Windows maintenance applications, equipment diagnostics, technical documents and field service records. Qualify the actual software version and peripheral drivers on the supplied OS image.
What ATEX certificate does W105 have?
The W105 EU-type examination certificate is ECM 25 ATEX-B DQ41, with marking II 2G Ex ib IIB T4 Gb. The certificate and test report TH2502289-C02-R01 are linked on this page. Match the certified configuration, certificate annexes and permitted accessories to the site before deployment.
What is the W105 operating temperature range?
The standard operating range is −20°C to +55°C. Hazardous-area operation follows the ambient limits and conditions stated in the applicable ATEX documentation and equipment marking. Charging and battery procedures must also follow the supplied instructions.
Which interfaces and network options are available?
The specification lists USB Type-A, USB Type-C, HDMI, Wi-Fi 6 and Bluetooth 5.1 LE, with optional 4G. E20 barcode scanning and accessories are configuration options. Confirm the complete BOM and ATEX-permitted connections for your project.
Can W105 use existing software and additional SSD storage?
Validate existing Windows applications, licences and drivers on the selected build. Standard memory and storage are 16 GB LPDDR4 and 128 GB eMMC. An M.2 2242 SATA expansion slot is listed; the installed SSD is specified separately. Ubuntu requires a compatibility review.
How do I request a sample or project quotation?
Use the project quotation or pilot enquiry entry on this page. Share the application, country, peripherals, ATEX requirements, estimated quantity and schedule to help define the sample and delivery configuration.
